Cold Plunge Dimensions: The Engineering Guide to Sizing, Clearance, and Structural Planning

  • 2026-10-22
  • 15

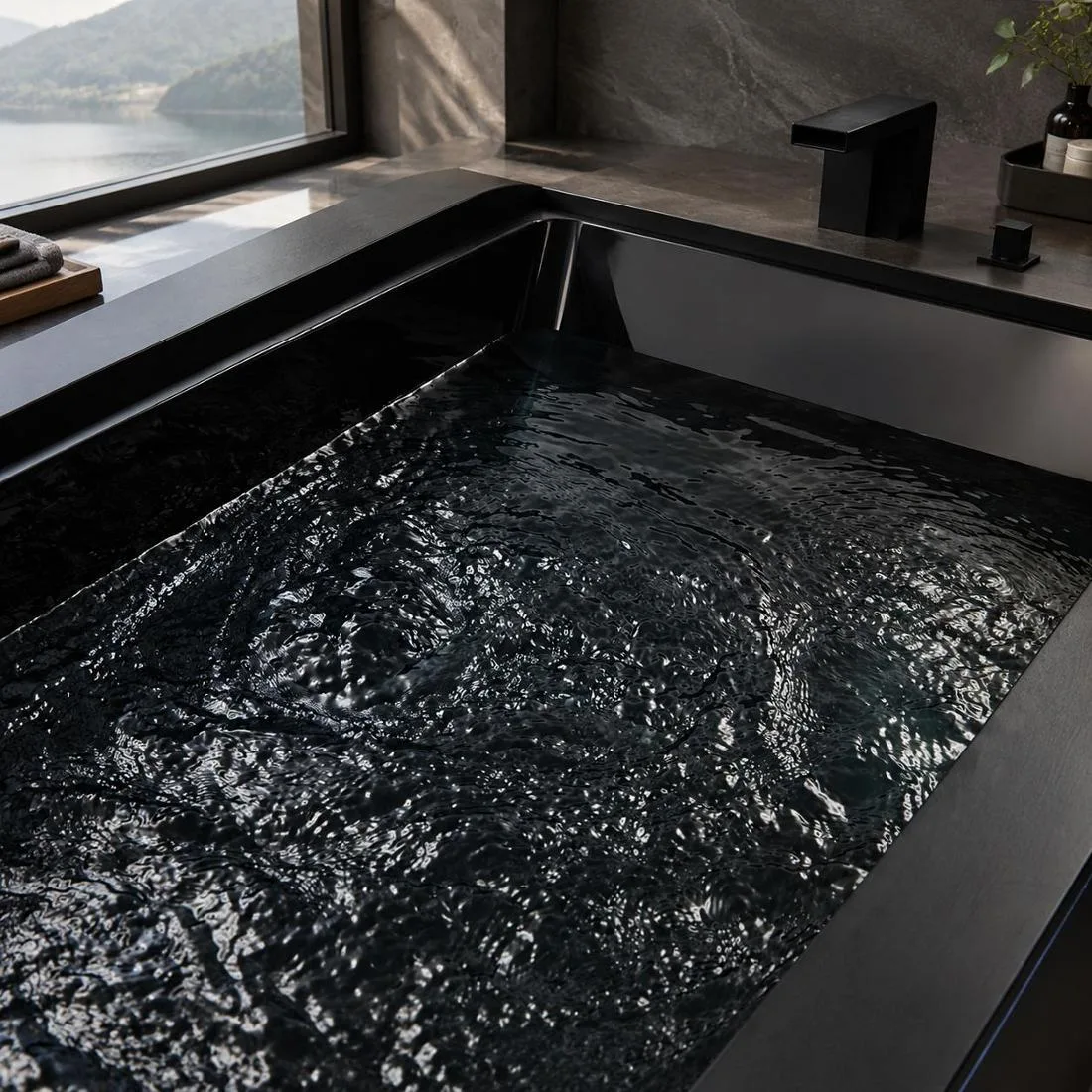

Studio perspective view of the OF-CP01 cold plunge tub showing the full architectural rectangular profile and deep interior basin

Selecting the right cold plunge dimensions determines whether your recovery ritual becomes a seamless daily discipline or an awkward domestic obstacle. If an ice bath is too short, you may not be able to submerge as much of your body as you prefer. If the external casing is too wide, it will jam permanently in a standard hallway turn. Navigating cold plunge tub dimensions requires evaluating your physical stature alongside technical site limits, including doorway widths, chiller exhaust ventilation margins, and the concentrated wet weight resting on structural subflooring.

Understanding Cold Plunge Dimensions: Exterior Footprint vs. Interior Basin

A common mistake in wellness architecture is conflating the outer shell footprint with usable bathing capacity. Outer shells must accommodate pumps, pipe manifolds, electrical junction boxes, and refrigeration condensers. Consequently, generous outer boundaries do not automatically translate to a spacious interior soak.

Defining the Exterior Footprint: Why Outer Casings Deceive

All-in-one chillers house an onboard refrigeration system beneath the cabinet envelope. This design delivers a tidy look, yet internal mechanical housings reduce the available basin space. Compare each model’s stated exterior dimensions with its internal basin measurements to understand how much room is actually reserved for equipment.

Split setups keep the basin separate from an external chiller, giving you a smaller tub footprint but demanding extra perimeter space for hoses and secondary equipment. This trade-off shifts floor consumption rather than eliminating it.

Measuring True Basin Volume: Ergonomics for Full Submersion

Comfortable cold immersion depends on basin depth and length that match your body size and preferred posture. True internal capacity depends on basin length at seat level, backrest slope, and waterline height below the rim.

Steep, near-vertical back walls maximize sitting length while shallow inclines steal water depth, forcing taller users to bend their knees outward toward the surface. Checking basin geometry tells you whether you will actually fit comfortably.

Standard Cold Plunge Dimensions Across Common Configurations

Commercial and residential designs generally follow three structural formats. Each configuration serves different spatial constraints and user anatomies, establishing a distinct relationship between overall volume and physical floor usage.

Compact Upright Barrels: High Depth, Minimal Floor Footprint

Vertical barrels reduce ground footprint by utilizing vertical water depth. These vessels fit onto small urban balconies or within cramped home gym corners. Entering requires climbing over a tall lip and holding a compact crouch.

This posture works for quick dips, but tight joint angles can cause muscle tension that interferes with relaxation. You save floor space at the expense of comfort.

Standard Single-Person Tubs: The Reclined Recovery Standard

Horizontal plunge tubs prioritize anatomical alignment by allowing bathers to stretch their lower limbs freely. As an illustrative range, some single-person designs measure between 67 and 85 inches in length and 28 to 33 inches in width, though dimensions and internal fit vary by model.

Ocean Future develops the OF-CP01 as a single-person tub with a long footprint, engineering the unit at 2140 x 770 x 714 mm (approximately 84.3 x 30.3 x 28.1 inches). This footprint pairs an integrated 1HP chilling system and Chinese white acrylic construction with full polyurethane insulation. Compare the specific model’s internal basin dimensions, waterline, and seating posture with your own fit requirements before purchase.

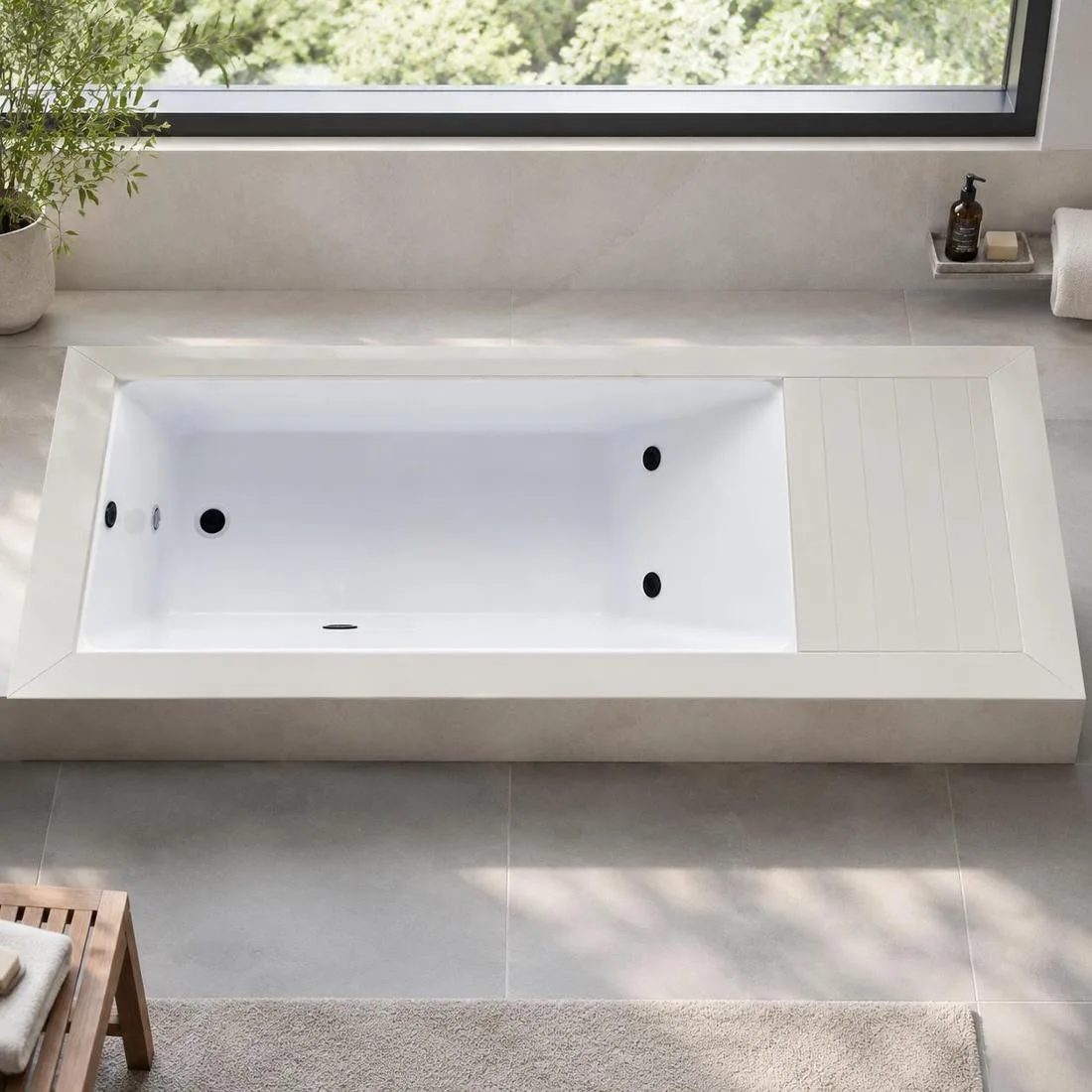

Overhead plan view of the white acrylic basin showing dual hydrotherapy jets, bottom drain, and adjacent chiller deck

Commercial and Dual-Person Plunge Tubs: High-Throughput Capacity

Facilities, wellness clubs, and larger homes often install dual-basin systems or wide-stance immersion vessels. These wider units allow two bathers to sit side by side or facing each other.

These setups require higher water volume, which demands heavy-duty commercial filtration and larger chilling capacity to keep temperatures steady during back-to-back sessions. The wider footprint also increases structural load and complicates installation.

Matching Interior Tub Dimensions to User Height and Posture

Selecting appropriate cold water therapy tub sizing requires evaluating how personal height relates to internal water depth. Ill-fitted units can leave your chest dry or force your head into awkward positions, turning focused breathing into an uncomfortable physical struggle.

Sizing Considerations for Shorter Users

Users of smaller stature may find that excessively long basins cause them to slide down, requiring bracing against the floor to stay in position. Lower water volume can speed up initial temperature pull-down, though the effect depends on the chiller capacity, insulation, and operating conditions.

Check the tub’s internal basin dimensions rather than relying on exterior measurements. Smaller bodies need less water to achieve full submersion.

Proportions for Average Height Users

Average height bathers benefit from interior floor lengths that allow comfortable leg extension while maintaining shoulder coverage. Check the actual basin shape, seating position, and waterline for comfort rather than relying on general angle recommendations.

Compare the specific model’s internal basin measurements with your own height and preferred posture. Where possible, physically test the seating position before purchase.

Dimensions for Tall Users: Avoiding Cramped Joint Alignment

Taller individuals need to verify that a tub’s interior length provides adequate leg room. When interior basin lengths are insufficient, long limbs force knees upward out of the water.

Taller users should look for tubs with extended basin floors or consider vertical configurations that use upright submersion. The vertical option trades leg room for a different posture. Where possible, physically test the seating position before committing to a purchase.

Spatial Clearance and Ventilation: Beyond the Tub Edge

Planning your layout around raw cabinet boundaries alone often leads to operational headaches. Active mechanical systems generate heat, and regular water changes require adequate operational room. Treating your cold plunge like a built-in architectural appliance prevents expensive airflow mistakes.

+-------------------------------------------------------------+
|               WALL OR STRUCTURAL BOUNDARY                   |
|                                                             |
|        <---- MANUFACTURER-SPECIFIED CLEARANCE ---->          |
|                                                             |
|   +-----------------------------------------------------+   |
|   |  CHILLER BAY  |               WATER BASIN           |   |
|   |  Exhaust Air  |                                     |   |
|   |    Grilles    |        2140 x 770 x 714 mm          |   |
|   +-----------------------------------------------------+   |
|                                                             |
|        <---- ACCESS ZONE FOR ENTRY, EXIT, COVER --->        |
|                                                             |
|                   USER INGRESS / EGRESS STEP                |
+-------------------------------------------------------------+

Chiller Exhaust and Airflow Margins: Preventing Equipment Strain

Refrigeration units remove heat from the water and vent it into the surroundings. Integrated chillers push warm air through cabinet louvers. Placing these exhaust vents flush against walls or barriers can restrict airflow.

Follow the manufacturer’s specified ventilation and service clearances for your exact model. Do not block ventilation grilles or air intakes. Consult the installation manual for minimum clearance requirements around mechanical components.

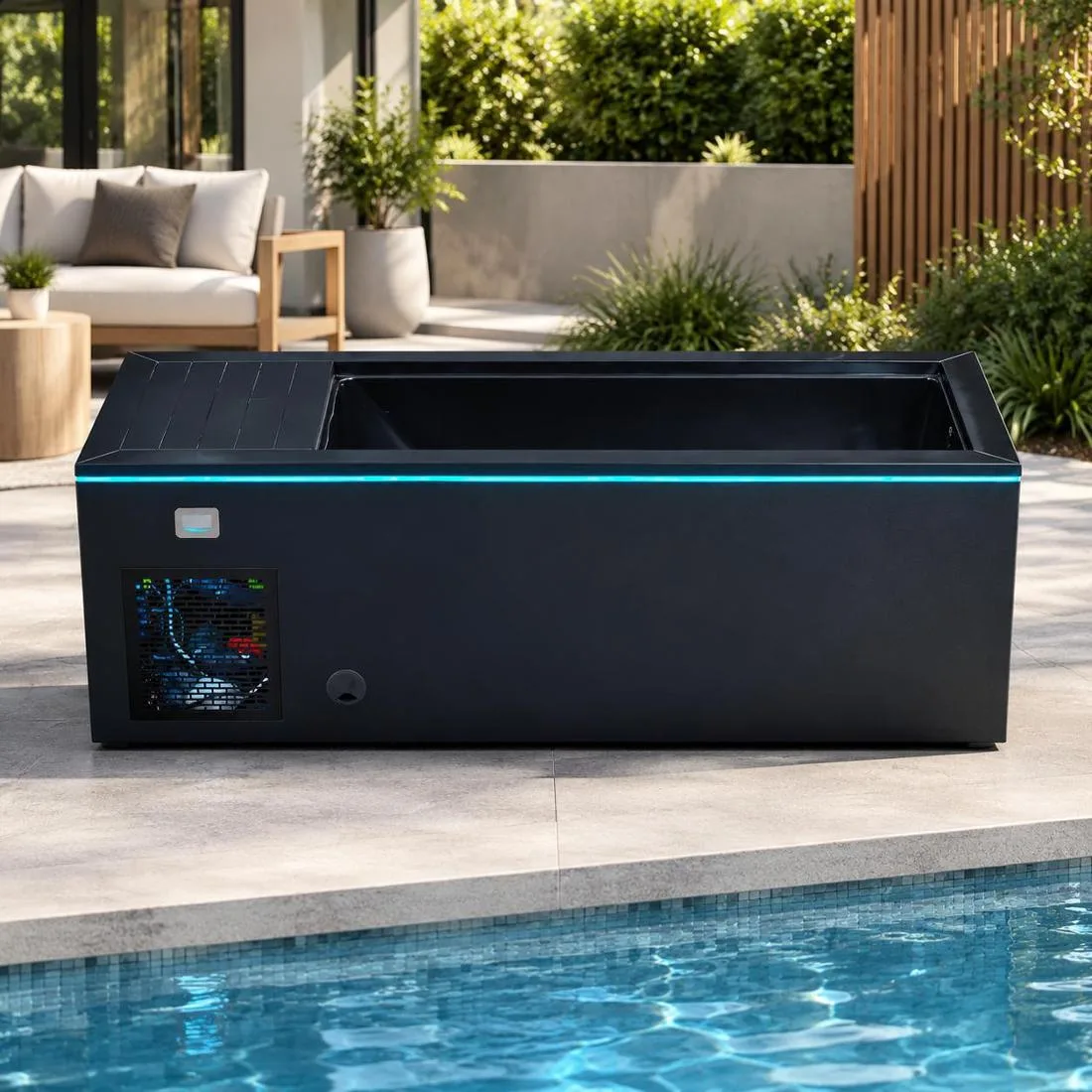

Side profile of the dark cold plunge cabinet highlighting louvered chiller exhaust grilles and perimeter lighting

Wet-Zone Ingress, Egress, and Step Clearance

Exiting near-freezing water can temporarily dull fine motor coordination and balance. Leaving a tight walking gap between the tub and nearby walls creates a tripping hazard.

As a planning example, many installations reserve 24 to 36 inches along the entry side, but measure for safe entry, exit, cover handling, and the actual step or access equipment your installation requires. Use slip-resistant flooring in this zone.

Weight and Structural Load: Can Your Floor or Deck Handle It?

Cold plunge water vessels carry substantial weight over small footprints. A tub that seems manageable when dry turns into a concentrated structural load once filled and occupied. Checking your floor capacity prevents sagging joists and costly structural repairs.

Calculating Operating Wet Weight: Tub, Water, and Bather

Calculating structural loads requires combining the dry equipment weight, total water volume, and the bather’s physical mass. Water weighs roughly 8.34 pounds per gallon (1.0 kg per liter).

To estimate the total static load for any cold plunge installation:

  • Confirm the unit’s net weight from the manufacturer’s specifications, including all integrated equipment.
  • Calculate the water payload by multiplying the model’s confirmed water capacity by water density.
  • Add an allowance for bather weight, typically 180 to 220 lbs (82 to 100 kg) for an adult user.
  • Sum these values to determine the estimated total static load concentrated across the tub footprint.

For the OF-CP01, the manufacturer specifies a net weight of 180 kg (397 lbs). Confirm the filled water volume from product documentation to complete an accurate load calculation for your installation.

Deck Framing and Ground Load Capacities: Professional Assessment Required

A filled plunge adds a substantial load over a limited footprint. Whether a deck can support it depends on the tub’s load and the deck’s framing and supports. Have the installation assessed by a qualified structural engineer.

Second-story installations, cantilevered decks, and older structures require particular scrutiny. Ground-level installations also need evaluation of the slab thickness, reinforcement, and subgrade bearing capacity.

Delivery Pathways and Architectural Access Planning

Many plunge installations run into issues before the tub even touches water. Units often arrive fully assembled, only to get stuck at interior door frames or narrow stair landings. Measuring your delivery path is just as important as checking the final floor spot.

Mapping Minimum Doorway and Hallway Clearances

Standard interior passage doors span 30 or 32 inches wide, while exterior doors often provide 36 inches. Measure the actual clear opening and route, including the tub and dolly dimensions in each planned orientation, doorway height, turns, and any required tilting.

Getting through tight spaces may require removing door slabs from their hinges or tilting the tub on its edge. Always measure from the inner door stops, since hinge hardware can narrow clear widths by over an inch.

+--------------------------------------------------------------+
|                 DELIVERY ACCESS AUDIT CHECKLIST              |
+--------------------------------------------------------------+
| [ ] Clear doorway width verified against tub height & width  |
| [ ] Diagonal transit turns through 90-degree corridors       |
| [ ] Stairwell overhead height & handrail clearance measured  |
| [ ] Gate latches, downspouts, and AC units checked outdoors  |
| [ ] Turning clearance verified for transitions onto patios   |
+--------------------------------------------------------------+

Navigating Thresholds, Turns, and Outdoor Gate Passages

Long tubs create serious clearance issues on sharp turns, similar to moving large furniture through tight spaces. An 84-inch chassis cannot negotiate a standard 90-degree hallway turn bounded by narrow walls without hanging up.

For outdoor setups, check that garden gates, low roof overhangs, gas utility meters, and air conditioner compressors leave a clear rolling path for heavy-duty carts. A single immovable obstacle can force you to crane the tub over fences or disassemble sections of your property.

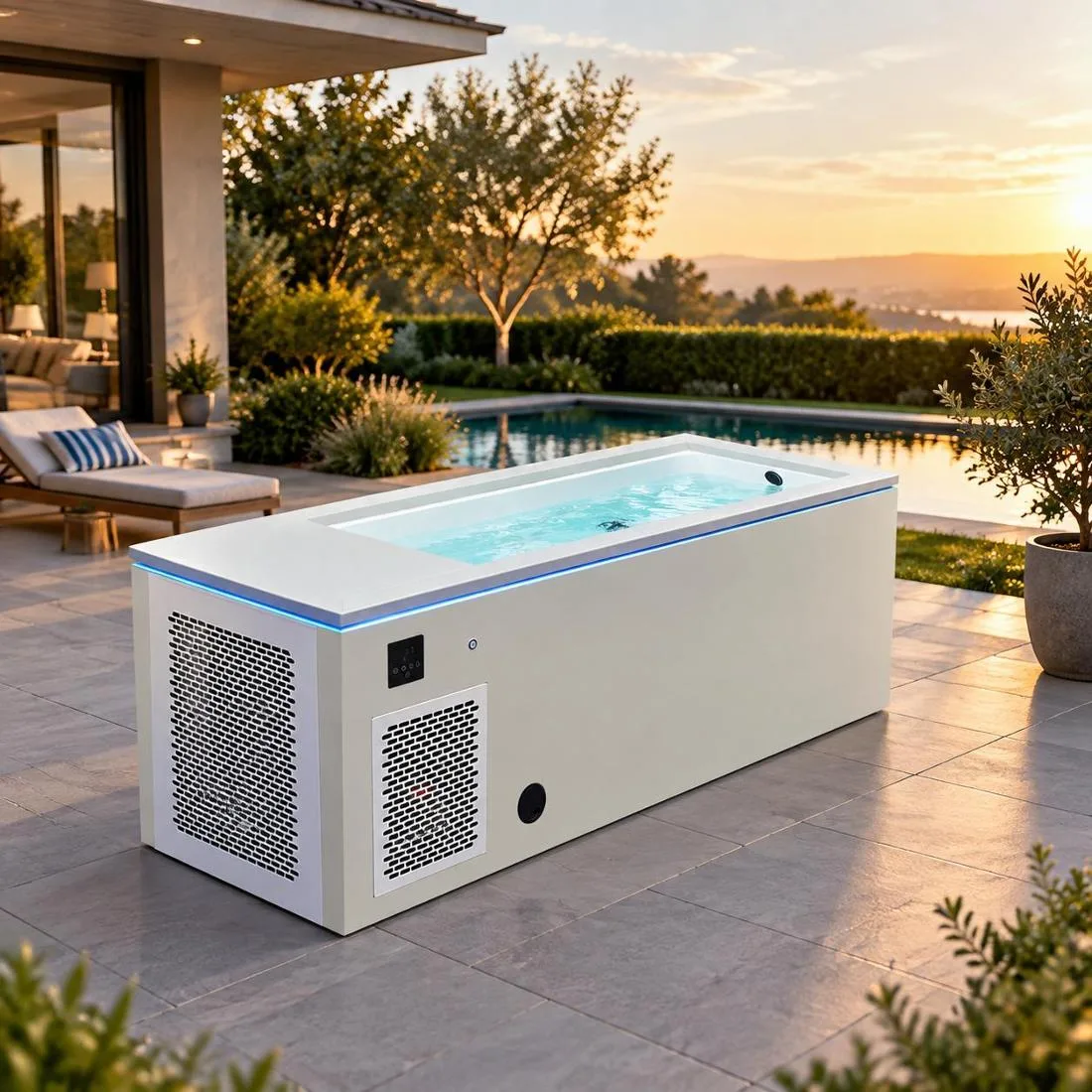

Outdoor residential patio setting showing a cold plunge tub integrated cleanly into landscape pavers with open access margins

Strategic Placement Scenarios: Indoors, Garages, and Outdoor Decks

Cold plunge placement determines your plumbing, electrical, and ventilation needs. Each domestic environment comes with distinct drainage and environmental factors that affect daily use.

Indoor Wellness Suites and Basements: Drainage and Humidity Mitigation

Indoor wellness installations eliminate weather exposure but introduce challenges with water splashing and humidity control. Submerged bodies displace water into overflow paths, and wet feet track moisture across the room on every exit.

Position the unit near a functional floor drain and protect nearby walls with water-resistant drywall. Follow the product nameplate and installation manual for electrical requirements, using a qualified electrician and complying with applicable local electrical code. If your basement maintains high summer humidity, add mechanical dehumidification to keep condensation from collecting on cool acrylic surfaces.

Backyard Patios and Covered Decks: Weatherproofing and Foundation Prep

Outdoor locations handle water splash naturally and provide open airflow for the chiller system. However, setting a plunge on uneven flagstones, raw soil, or loose gravel can twist the cabinet frame, straining internal pipe connections.

Use a level support designed for the tub’s filled load and have the slab or sub-frame assessed for the site conditions. If your yard lacks tree cover, placing the tub under an open pergola shields the top insulated cover and acrylic shell from direct sun and heavy weather.

Setting Operational Parameters: Controls and Diagnostics

Planning external clearances around the cabinet rim should also accommodate easy access to manual drainage fittings and digital controls. Modern recovery tubs use integrated control panels to display temperature changes and support timer settings.

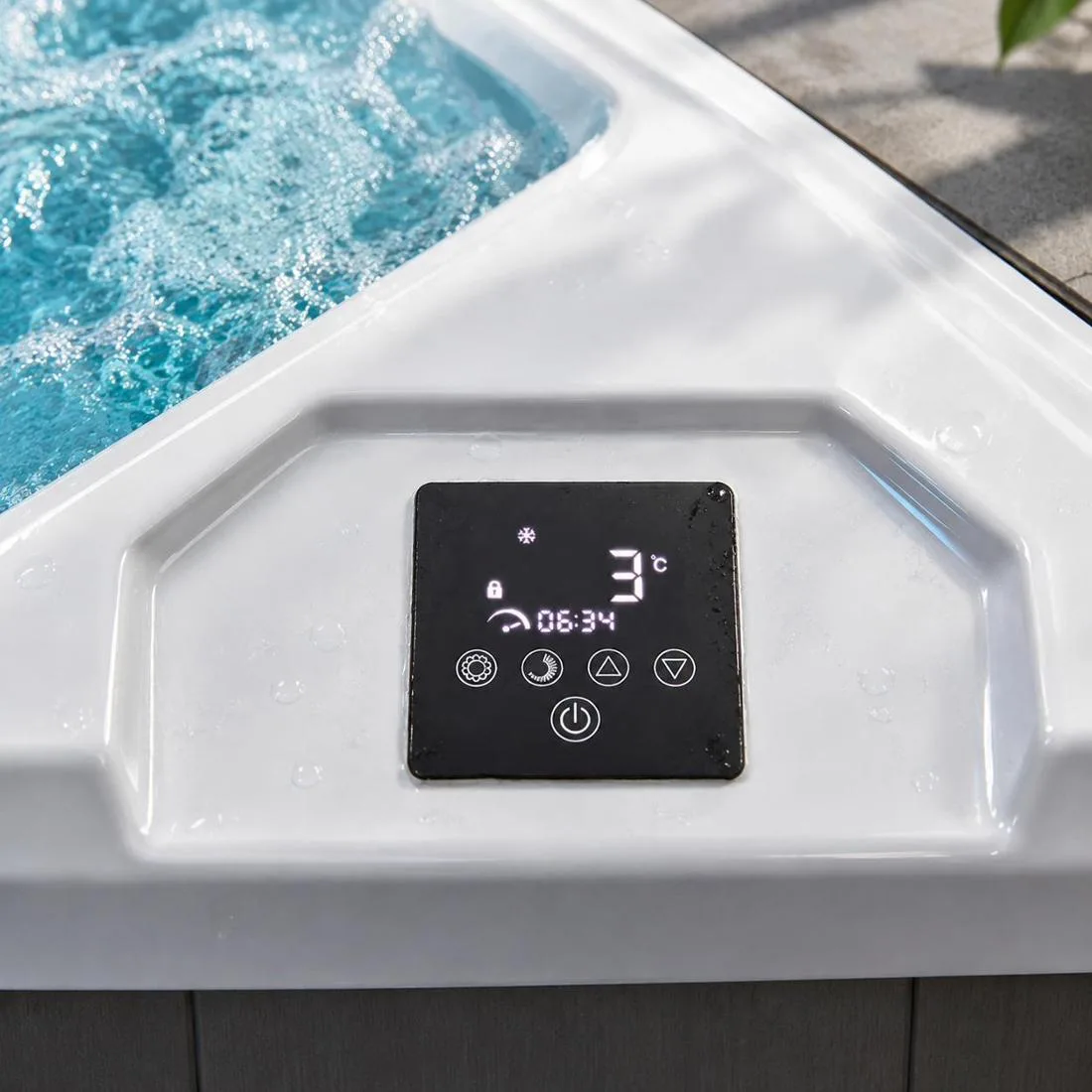

High-angle close-up of a digital touchscreen panel integrated into the acrylic deck display reading 3 degrees Celsius

Placing the tub controls within easy arm’s reach lets you track therapy timers without stepping out onto cold tile or decking. The OF-CP01 positions its digital touchscreen right on the wide acrylic rim. This location lets bathers monitor water temperature and set session durations without having to reach around back into mechanical service bays.

The unit includes an ozone generator and filtration system as integrated sanitation features. Follow the model’s water-care and maintenance instructions. LED perimeter lighting provides visibility during evening use without requiring overhead fixtures.

Frequently Asked Questions (FAQs)

What is the minimum doorway width needed to deliver a cold plunge tub?

Measure the actual clear opening and complete delivery route, including the tub and dolly dimensions in each planned orientation, doorway height, turns, and any required tilting. Nominal doorway widths do not account for door hardware, dolly wheels, or maneuvering clearances.

How much clearance space is required around the chiller ventilation grilles?

Follow the manufacturer’s specified ventilation and service clearances for the exact model. Do not block ventilation grilles or air intakes, as restricted airflow can strain refrigeration components and reduce cooling efficiency.

Can I place a full-sized cold plunge on a standard second-story wooden deck?

Never install a full plunge tub on a second-story wooden deck without first consulting a qualified structural engineer. Filled tubs create concentrated static loads that require site-specific structural assessment of the deck framing, connections, and supporting structure.

How deep does a cold plunge need to be for comfortable immersion?

Choose a basin depth that allows you to submerge comfortably to your preferred level while maintaining a relaxed seated or reclined posture. Check the manufacturer’s internal basin dimensions and, where possible, physically test the seating position before purchase.

Does a cold plunge tub require dedicated permanent plumbing lines?

Plumbing needs and drain connections vary by model. Check the installation manual and confirm that the planned discharge location is suitable. Many self-contained plunges can be filled using a garden hose and drained through built-in valves or pumps. Setting the tub near a floor drain or outdoor runoff area simplifies routine maintenance.

Conclusion

Carefully evaluating cold plunge dimensions ensures your investment integrates smoothly with your home recovery space and delivers comfortable daily immersion. Review your entry routes, obtain professional assessment of floor support for the calculated tub load, and follow manufacturer ventilation clearances around the cabinet perimeter. When equipment specifications match your physical stature and site architecture, cold water therapy becomes a sustainable, invigorating daily practice.
