Putting a Cold Plunge in Garage Spaces: The Complete Engineering and Setup Guide

  • 2026-10-27
  • 9
Outdoor lifestyle application scene showing the OF-CP01 cold plunge tub installed on a modern residential backyard patio

Setting up a cold plunge in garage environments solves the biggest dilemma in home recovery. Outdoor patios expose expensive chillers to baking sun and falling leaves, while spare bedrooms risk catastrophic water damage on timber subfloors. A garage cold plunge setup gives you a solid concrete foundation, a surface that may be easier to clean than finished flooring, and shelter from harsh weather right next to your lifting rack. Wastewater disposal must follow local codes and equipment instructions rather than defaulting to driveway runoff.

Yet treating a residential garage like an ordinary room is a costly mistake. Uninsulated doors trap heat rejected by the chiller, sloped concrete slabs create uneven support, and shared electrical circuits trip under compressor startup loads. Turning a raw parking bay into a reliable recovery zone requires deliberate planning around thermodynamics, floor pitch, and power delivery.

Why the Garage Is Prime Real Estate for Cold Water Immersion

Homeowners often debate between backyard decks, finished basements, and utility bays before purchasing an immersion tub. When you examine the structural and environmental trade-offs, installing a cold plunge in garage bays consistently outperforms both indoor rooms and exposed patios.

Structural Load Capacity and Concrete Slab Advantages

Water is deceptively heavy, weighing 8.34 pounds per US gallon, or roughly one kilogram per liter. When you combine an insulated single-person cabinet with a dry net weight of 180 kg, the water volume you add, and your own body weight during immersion, the concentrated load on your floor becomes substantial. Calculate the total load based on your specific water volume, equipment weight, and occupant weight to understand what your floor must support.

Floor structure, thickness, reinforcement, and foundation conditions all affect load capacity. A poured concrete garage slab resting directly on compacted grade may handle concentrated loads differently than elevated timber floor joists, but each installation requires individual assessment. If your garage slab shows cracks, settling, or other structural concerns, consult a qualified structural engineer or building professional to evaluate whether it can safely support the total load before placing heavy equipment.

Weather Shielding Without Indoor Moisture Risks

Leaving a cold tub completely exposed in an open yard invites constant maintenance battles. Ultraviolet radiation degrades exterior trim, windblown dust clogs mechanical filters, and summer rainstorms dilute your sanitized water chemistry. Bringing the tub inside a finished bathroom or carpeted basement avoids weather damage, but enthusiastic entries can send gallons of cold water cascading over drywall baseboards.

A garage setup strikes the exact middle ground, shielding the cabinet from direct UV exposure while giving you a concrete floor that may be easier to clean and maintain than carpet or hardwood. The enclosed space protects mechanical components from wind, precipitation, and temperature extremes while maintaining enough ventilation to manage heat exhaust from the chiller system. Manage spills promptly and consider sealing or protecting vulnerable surfaces if your concrete slab is porous or unsealed.

Pre-Installation Engineering: Assessing Your Garage Environment

Before rolling a pallet across your threshold, you need to audit the physical quirks of residential garage construction. Builders design garages to shed rainwater from parked cars and run low-draw lighting, not to house continuous-duty refrigeration equipment.

Managing Garage Floor Slope and Drainage Paths

Almost no residential garage floor is truly flat. Garage slabs typically slope toward the overhead door or a drainage point to allow melted snow and vehicle runoff to drain outside. The actual pitch varies depending on site conditions and local building requirements. Installing equipment on a sloped surface can create uneven support that may affect frame alignment and component function over time.

Before placing your cold plunge, check the manufacturer’s installation manual for leveling requirements and approved leveling methods. Some systems may specify acceptable tolerances, while others may require perfectly level installation. You can correct pitch by placing high-density rubber leveling shims or manufacturer-approved support platforms beneath the base frame, but verify that your approach complies with the equipment warranty and installation specifications before proceeding.

Chiller Thermodynamics and Heat Exhaust Clearance

A mechanical water chiller does not manufacture coldness out of thin air. Instead, it acts as a heat pump, extracting thermal energy from your bathwater and exhausting that warm air straight into the surrounding garage through side ventilation grilles. This rejected heat must disperse into the garage volume rather than recirculating back into the chiller intake, which would reduce cooling efficiency and increase compressor runtime.

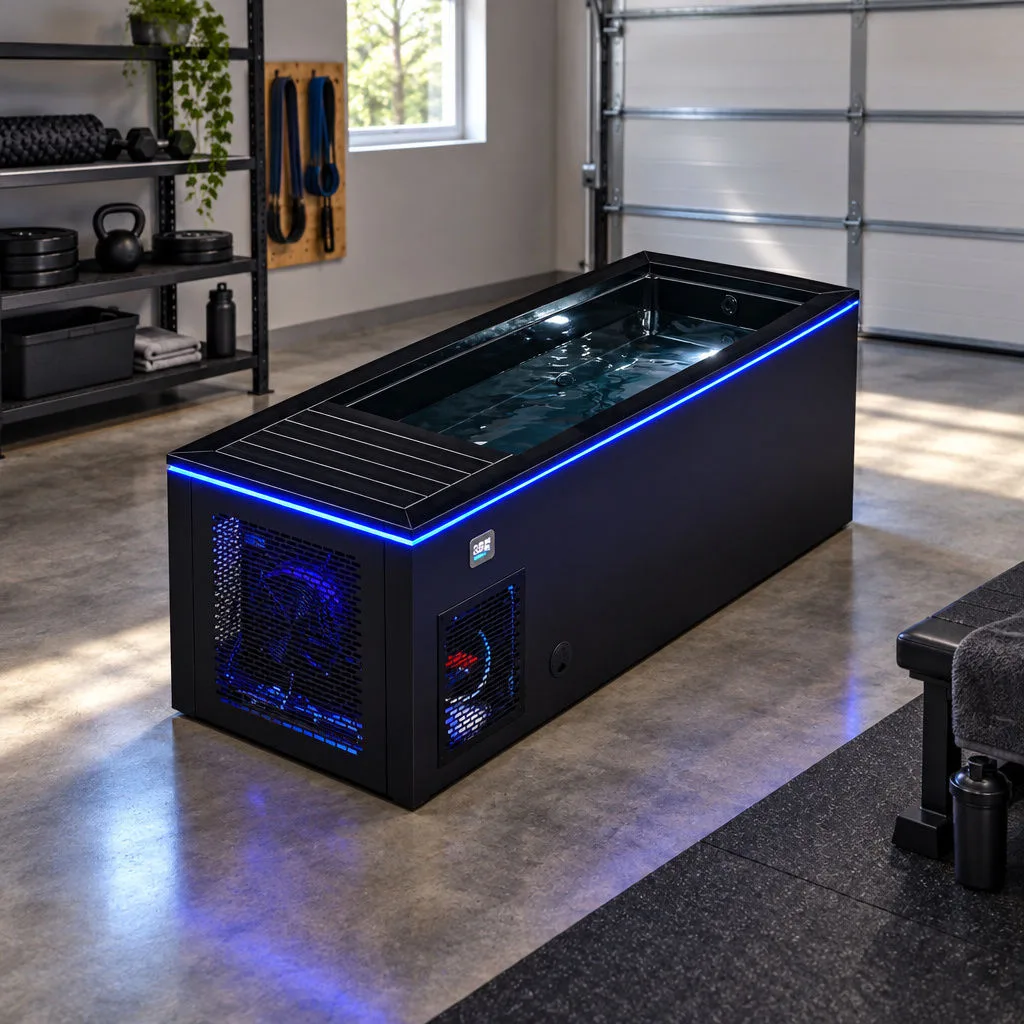

High-angle perspective view highlighting the side profile and interior basin of the black cold plunge tub with slatted chiller ventilation grille

Pushing the chiller exhaust grille flush against drywall or restricting airflow around the condenser can cause hot air to recirculate back into the intake, reducing cooling performance. Always follow the clearance specifications in the OF-CP01 installation manual around the louvered chiller compartment so rejected heat can disperse into the upper garage volume. If the manual does not specify clearance, contact the manufacturer for guidance on minimum spacing requirements.

Dedicated Electrical Circuits and GFCI Protection

Water and household alternating current demand strict respect, especially on conductive concrete slabs. Under National Electrical Code guidelines for dwelling unit garages and hydromassage equipment, any receptacle powering a cold water immersion tub must have Ground Fault Circuit Interrupter protection that cuts power within milliseconds of detecting a current imbalance. Beyond shock protection, you must evaluate circuit load capacity based on the unit’s electrical specifications.

Verify the voltage, current draw, and any circuit requirements from the OF-CP01 nameplate and installation instructions, and have a qualified electrician confirm that your garage wiring can handle the load safely. Install a dedicated circuit only if the manufacturer’s specifications, local electrical codes, or your electrician’s assessment require it for your specific unit and garage electrical system.

Choosing the Right Equipment Architecture for a Garage Setup

Not every cold tub configuration thrives in a tight multi-use garage where car doors swing open and gym barbells get racked. Selecting the right equipment layout determines whether your home gym garage cold plunge feels like a permanent wellness facility or a tangled plumbing experiment.

Architecture TypeTotal Garage FootprintThermal InsulationHeat & Noise ControlPlumbing & Trip Hazards
All-in-One Integrated Cabinet (e.g., OF-CP01)Compact rectangular profile (2140 x 770 x 714 mm)Full internal PU insulation plus fitted coverContained behind louvered cabinet skirtNone; chiller and plumbing sit under the deck
External Chiller plus Barrel/TubWide; requires separate floor space for chiller boxVaries by model; exposed external hoses may gain or lose heatExposed chiller fan radiates noise directlyHigh; braided hoses snake across the garage floor
Manual Ice Chest / Stock TankVariable footprint plus extra freezer space for ice bagsLow; uninsulated metal walls conduct heat readilySilent, unless running a separate ice makerMessy; ice requirements vary by tub volume and target temperature

Footprint Optimization: Integrated vs. External Chiller Systems

External chillers connected to portable barrels via insulated hoses require separate floor space for both the tub and the chiller unit. Those exposed circulation pipes also sweat in humid summer air and create trip hazards between your workbench and vehicle bay. At Ocean Future, we engineered the OF-CP01 single-person cold plunge tub to eliminate external plumbing clutter while pairing natural design elements with eco-conscious materials.

Measuring 2140 x 770 x 714 mm, its rectangular cabinet houses the 1HP chiller, filtration assembly, and ozone sanitation hardware cleanly beneath an integrated wood surface deck. Whether you select the matte black or clean white decorative skirt, the entire footprint tucks tightly along a single garage wall without protruding hoses. The contained design means you can walk around the perimeter without navigating around external equipment or tripping over connection lines.

Direct overhead plan view of the white finish cold plunge tub showing the Chinese white acrylic basin and segmented equipment access deck

Thermal Insulation and Energy Conservation in Unconditioned Spaces

Unlike an air-conditioned master bathroom, an uninsulated garage can swing from forty degrees in January to well over ninety-five degrees in August. Without serious thermal barriers, an uninsulated stock tank or thin plastic barrel acts like a giant radiator, absorbing ambient garage heat and forcing the chiller to run continuously. The OF-CP01 addresses this challenge through polyurethane thermal insulation packed inside the cabinet walls, paired with a Chinese white acrylic basin.

According to the product specifications, the system includes full PU insulation and a protective fitted tub cover designed to help retain target temperatures and conserve energy. When you secure the cover after your morning session, it creates a barrier that reduces heat transfer between the cold water and the surrounding garage air, which may help reduce compressor cycling compared to an uncovered or uninsulated setup.

Automated Water Sanitation in Windowless Environments

Windowless garages trap airborne dust from sawdust, lawn equipment, and concrete wear. If you rely on a stagnant tub without active circulation, body oils and garage dust quickly form a slick biofilm along the water surface. The OF-CP01 counters stagnation through a multi-stage sanitation loop built directly into the chassis. A dedicated mechanical filter system traps suspended particulates while an integrated ozone generator continuously oxidizes microscopic contaminants to help keep water clear.

The unit also includes two hydrotherapy jets that promote water movement across the acrylic basin. However, clear water does not guarantee safe water, and filtration plus ozone generation supplement but do not replace routine water quality monitoring. Follow the manufacturer’s guidance on water testing, cleaning intervals, and any recommended disinfection procedures to maintain proper sanitation.

Step-by-Step Blueprint for Installing a Cold Plunge in Your Garage

Moving from delivery day to your first immersion session goes smoothly when you follow a disciplined mechanical sequence. Rushing to fill the basin before testing levels or drainage paths guarantees a two-hour pumping headache later. Individual responses to cold water immersion vary widely, and people with cardiovascular conditions should consult a physician before beginning cold immersion routines.

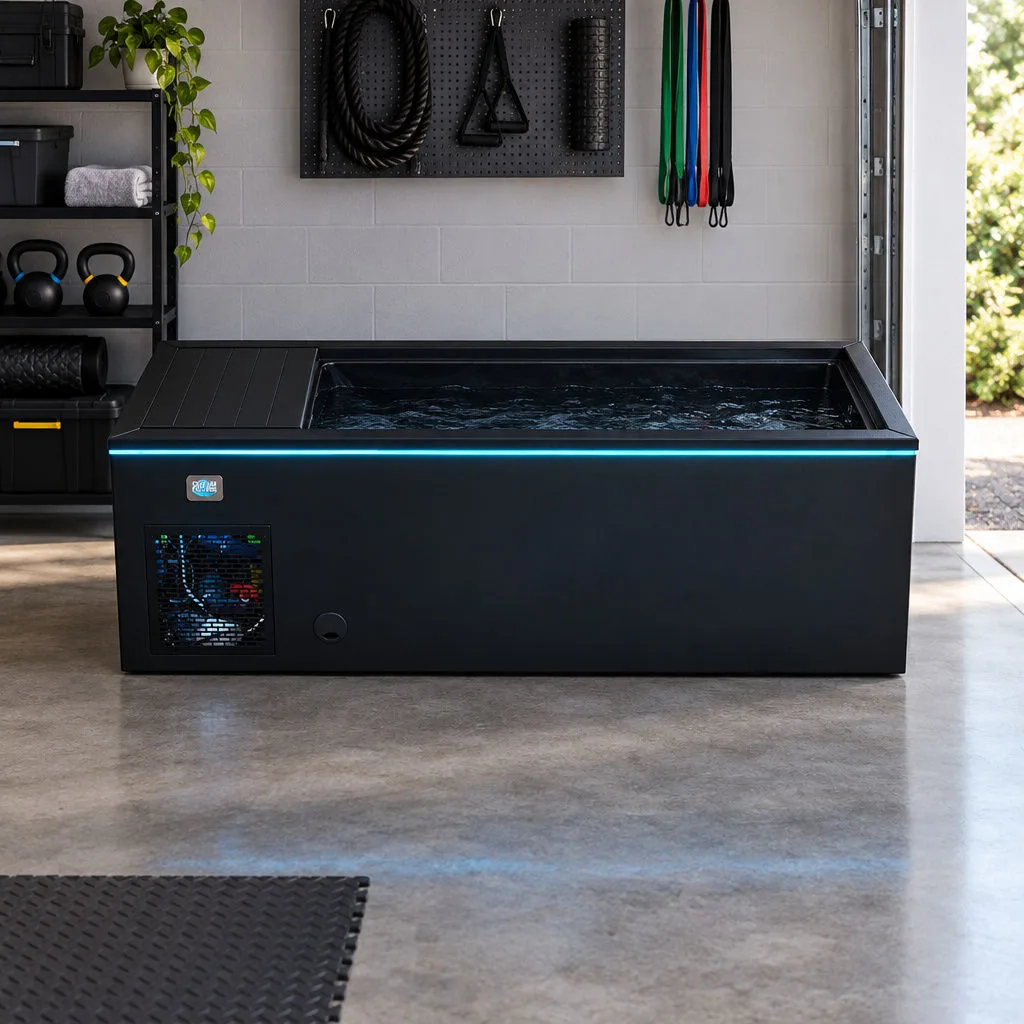

Front-facing horizontal eye-level studio shot of the black OF-CP01 cold plunge tub with cyan-blue LED strip and louvered ventilation grille
  1. Map Your Footprint and Service Clearances: Mark a 2140 x 770 mm rectangle on your garage slab using painter’s tape. Follow the ventilation and service clearances specified in the OF-CP01 installation manual around the louvered chiller compartment and verify that car doors and overhead garage tracks clear the 714 mm cabinet height. If clearance specifications are not provided, contact the manufacturer.
  2. Level the Dry Cabinet: Position the 180 kg dry unit onto its marked pad before connecting water. Check the manufacturer’s leveling requirements and use only approved leveling methods. If the manual allows shims, place them along the down-slope garage edge and verify level across both the long acrylic rim and the wood surface deck using a carpenter’s level.
  3. Inspect Drainage and Overflow Connections: Locate the integrated floor drainer and built-in overflow system. Before the first fill, check your local regulations and the equipment manual for proper wastewater disposal. Drain water only to approved sanitary sewer connections or other permitted discharge points specified by local codes and the manufacturer, not to storm drains or surface water unless explicitly allowed.
  4. Verify GFCI Protection and Circuit Capacity: Confirm with a receptacle tester that your wall outlet is properly grounded and protected by a functioning GFCI circuit breaker. Verify that the circuit meets the electrical specifications on the OF-CP01 nameplate and installation instructions. Have a qualified electrician confirm your wiring meets the unit’s requirements and install a dedicated circuit only if required by the manufacturer, local codes, or professional assessment. If the manufacturer prohibits extension cords, follow that guidance strictly.
  5. Fill and Bleed Air: Fill the Chinese white acrylic basin using a garden hose. If the manufacturer recommends pre-filtration, use a filter compatible with the equipment and effective for the contaminants specified in the manual. Stop filling once the water level sits comfortably below the overflow port and above the dual hydrotherapy jets.
  6. Commission the Digital Touchscreen: Power on the control system, verify water flow through the filter housing, and set your target temperature on the digital touchscreen display.

Mapping Access Clearance and Service Zones

A common mistake in home gym garage cold plunge layouts is wedging the tub tightly between a squat rack and a masonry corner. While the top opening remains accessible, boxing in the ends blocks access to the removable wood surface deck and side ventilation ports. Think of the equipment bay like the hood of a car. You need enough elbow room on the chiller end to lift the access deck, inspect the ozone generator, and replace the filter cartridge according to the manufacturer’s maintenance instructions, all without dragging a thousand-pound filled tub across the concrete.

Refer to the manufacturer’s service requirements for minimum clearances around access panels, filter housings, and control components. Plan your layout so routine maintenance tasks can be completed without moving the filled unit or requiring special tools to reach basic service points.

Filling, Draining, and Hose Routing Strategies

Most suburban garages lack a central floor drain connected to the municipal sanitary sewer. Before draining your cold plunge for routine water changes, check local regulations regarding wastewater discharge and follow the equipment manual’s recommendations. Because the OF-CP01 includes both an overflow system and a dedicated bottom drainer, emptying the basin takes minimal effort when routed to an approved discharge point.

Depending on your setup and local codes, you may be able to use gravity drainage through a hose to a sanitary sewer connection, or use a small submersible utility pump to transfer water to an approved disposal location. Never route cold plunge wastewater to storm drains, street gutters, or surface water bodies unless your local jurisdiction and equipment manual explicitly permit that disposal method.

Commissioning the Digital Control System and Lighting

Once the basin is full and air bubbles have cleared from the circulation pump, you can dial in your recovery protocol. The built-in digital touchscreen display on the acrylic ledge shows real-time water temperature, cooling status icons, and a programmable session timer. Early-morning plunges before sunrise are where garage setups truly shine. Instead of flipping on harsh overhead fluorescent shop lights that shock your nervous system at 5:30 AM, you can switch on the integrated perimeter LED lighting.

Close-up top-down view of the built-in digital touch control panel on the smooth white acrylic tub ledge showing 3 degrees Celsius and timer

The soft cyan-blue glow outlines the cabinet rim and illuminates the water surface, creating a calm, focused atmosphere inside a utilitarian garage. This ambient lighting provides enough visibility to enter and exit safely without the glare of full overhead illumination.

Seasonal Operation: Running a Garage Plunge Through Summer and Winter

Garages buffer the worst outdoor weather, yet they still experience wider temperature swings than conditioned living rooms. Adjusting your operating habits across seasons protects both your chiller compressor and your plumbing seals.

Managing Heat Dissipation in Summer

When outdoor highs push garage temperatures past 32°C (90°F), crack the garage door an inch or run a small wall-mounted exhaust fan during peak afternoon heat so warm chiller exhaust does not bake the room. Keep the fitted tub cover in place whenever the tub is unoccupied; leaving cold water exposed to warm, humid summer garage air invites surface condensation and forces the chiller to work harder. Sweep or vacuum pet hair, sawdust, and pollen off the louvered chiller intake grille once a month so airflow across the internal heat exchanger never drops.

Position your cold plunge away from heat sources such as water heaters, furnaces, or parked vehicles with hot engines. Radiant heat from nearby equipment increases the thermal load on your chiller and may reduce cooling efficiency or increase energy consumption.

Preventing Freeze Damage During Sub-Zero Winters

If you live in a northern climate where an unheated garage drops below freezing for extended periods, consult the OF-CP01 installation manual for minimum operating temperature specifications and winterization procedures. Water inside the main acrylic basin holds high thermal mass, whereas narrow internal heat exchanger channels inside a chiller hold only small volumes of water. When ambient temperatures fall below the unit’s rated operating range and the pump is turned off, internal water passages may freeze and damage fittings.

Follow the manufacturer’s guidance on winterizing the unit if your garage will drop below the specified minimum temperature. If winterization instructions are not provided, contact the manufacturer to confirm whether the unit should be drained or what other freeze-protection steps are required. Never assume that keeping the unit powered or adding supplemental heat will prevent freeze damage unless the manufacturer explicitly approves those methods for your temperature conditions.

Frequently Asked Questions About Putting a Cold Plunge in a Garage

Will a cold plunge make my garage too humid or cause mold?

Cold plunge tubs typically produce much less water vapor than hot tubs because cold water has lower evaporation rates. However, any open water surface will release some moisture into the air, especially when the cover is removed. Keep the fitted tub cover in place when the unit is not in use, and monitor your garage’s humidity level. If condensation or musty odors develop, improve ventilation or consider a dehumidifier to maintain appropriate humidity levels.

Can I plug my garage cold plunge into an extension cord?

Check the OF-CP01 installation manual and nameplate for electrical requirements and any restrictions on extension cords. If the manufacturer prohibits extension cords, follow that guidance. In general, high-draw appliances with compressors benefit from direct connection to properly rated circuits to avoid voltage drop and overheating. Have a qualified electrician verify that your wiring meets the unit’s specifications and install power connections according to the manufacturer’s requirements and local electrical codes.

How often do I need to drain and refill a garage cold plunge tub?

Maintenance intervals depend on usage frequency, bather load, water quality testing results, and the manufacturer’s recommendations. While the OF-CP01 includes an integrated ozone generator and mechanical filter to help manage water quality, these features do not eliminate the need for regular testing, cleaning, and water changes. Follow the manufacturer’s maintenance schedule and test water chemistry regularly to determine safe change intervals for your specific conditions. Replace filter cartridges according to the maintenance timeline provided in your equipment manual.

How much space do I need around a cold plunge in a two-car garage?

For a single-person unit like the OF-CP01 measuring 2140 x 770 mm, you need to allocate space for the footprint itself plus clearances for ventilation, service access, and comfortable entry. Consult the installation manual for the required clearances around ventilation grilles and service panels. If specific dimensions are not provided, contact the manufacturer for guidance on minimum spacing to ensure proper airflow and maintenance access. Plan your layout to accommodate the unit’s footprint, required clearances, and adequate walking space for safe entry and exit.

Conclusion: Building a Sustainable Garage Recovery Routine

A convenient installation location may help you develop consistent cold immersion habits, though individual responses to cold water exposure vary widely. When your tub sits buried under a snowbank in the backyard or requires hauling bags of ice every session, logistical friction eventually wins and the habit fades. Placing a self-contained, PU-insulated cold plunge in garage spaces removes many practical obstacles between you and regular recovery sessions.

By assessing your floor’s load capacity, following manufacturer ventilation and electrical specifications, managing wastewater according to local codes, and choosing a compact integrated system like the OF-CP01 with automated ozone sanitation, your garage cold plunge setup can deliver convenient cold water immersion just steps from your back door. Proper installation, routine maintenance, and attention to seasonal temperature changes help ensure reliable long-term operation in the unconditioned garage environment.
