The Complete Guide to Cold Plunge Heaters: Winter Freeze Protection, Dual-Temperature Systems, and P

  • 2026-10-22
  • 16

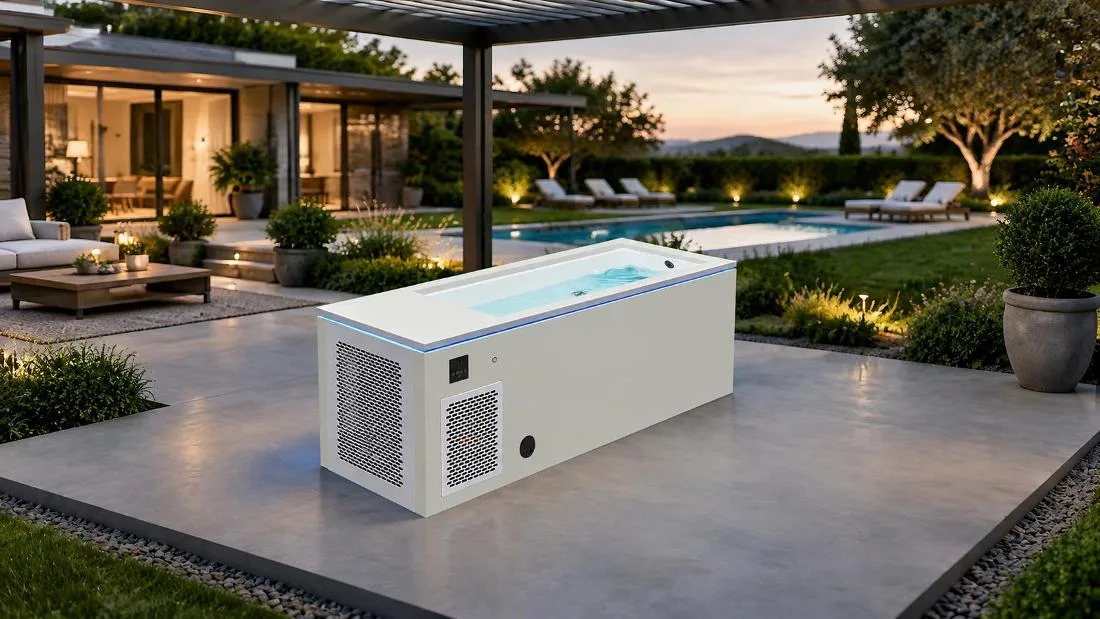

Modern residential backyard patio installation of the OF-CP01 cold plunge tub integrated into outdoor landscaping

Investing in cold water immersion usually begins with a quest for sub-five-degree water, yet cold weather quickly reveals an unexpected vulnerability. Sustained below-freezing conditions can cause an unprotected outdoor basin or its exposed plumbing to freeze, threatening lines and internal pumps with catastrophic ice expansion. The freezing risk and timeline depend on installation details, insulation quality, water volume, and weather conditions. Installing a dedicated cold plunge heater transforms what seems like a thermal paradox into an essential engineering safeguard. Whether you need winter freeze protection or want a cold plunge heater and chiller combo for contrast therapy, thermal regulation requires deliberate planning.

Understanding the Paradox: Why Your Cold Plunge Needs a Dedicated Heater

At first glance, integrating a heating element into a cold water immersion system seems counterintuitive. Athletes and recovery enthusiasts spend substantial sums on compressors specifically designed to pull calories out of water. Yet true temperature control demands the ability to move thermal energy in both directions depending on external conditions.

Preventing Sub-Zero Pipe Ruptures and Frozen Tub Basins

Water expands by roughly nine percent as it transitions into ice, exerting immense mechanical pressure against rigid container walls and plumbing fittings. When ambient winter air drops below freezing for sustained periods, an idle plunge basin loses heat through surface evaporation and conductive sidewalls until ice crystals eventually lock the impeller of the circulation pump. Once fluid movement stops, internal heat exchangers and external plumbing lines risk freezing solid, with the timeline depending on exposure, insulation, water volume, and weather conditions. A controlled heating system acts as an active thermal barrier, introducing low-wattage heat whenever water temperatures approach two degrees Celsius. This targeted warmth protects structural integrity without compromising your ability to take an ice bath the following morning.

Always consult your equipment manufacturer’s freeze-protection instructions for the tub and exposed plumbing, as installation details and climate conditions determine specific requirements. Maintaining the basin water temperature alone does not guarantee that exposed plumbing, filtration equipment, or heat exchanger components will remain protected; those elements may require additional insulation, heat trace cables, or other freeze-prevention measures specified by the manufacturer.

Unlocking Year-Round Contrast Therapy in a Single Footprint

Beyond basic winter maintenance, controlled heating allows recovery spaces to double as hot soak environments. Alternating between cold immersion and hot water immersion may trigger cycles of vasoconstriction and vasodilation, though individual responses vary and research on metabolic benefits remains limited. Accomplishing this contrast regimen usually requires two separate vessels: a dedicated hot tub and an ice bath. A reversible-cycle system or supplemental inline heater enables single-vessel contrast therapy, shifting water from four degrees Celsius to thirty-eight degrees Celsius. That flexibility saves valuable floor space in compact home gyms or residential patios.

Dialing in Accessible Thresholds for Progressive Conditioning

Not every body responds favorably to an immediate drop into near-freezing water, particularly individuals dealing with vascular sensitivity or chronic joint stiffness. Beginners sometimes find that immersion at twelve to fifteen degrees Celsius provides a gentler introduction, though sudden cold exposure can still trigger physiological stress responses even at these temperatures. The best approach depends on measuring your fill water’s actual temperature and choosing equipment that can adjust it to your desired target. Without a supplemental heat source, adjusting naturally cold water upwards to a tolerable training threshold becomes difficult. A precise heating element gives practitioners total authority over their baseline acclimatization curve.

Evaluating the Three Core Cold Plunge Heating Technologies

Achieving bidirectional thermal control involves distinct mechanical methods, each with unique power demands, safety considerations, and installation requirements. Understanding how these systems introduce heat into circulating water helps prevent costly equipment mismatched to your climate.

Submersible Drop-In De-Icers: The Minimalist Stopgap

Submersible heating elements, originally engineered for agricultural livestock tanks, represent the most basic approach to freeze prevention. These units rest directly on the floor of the basin or float near the water surface, relying on simple bi-metal thermostats that engage when water approaches freezing. While cost-effective, drop-in de-icers lack integration with filtration systems and produce localized hot spots. Because they operate without forced circulation, warm water pools around the element while distant corners of the tub remain vulnerable to ice formation. Placing unshielded heating elements against acrylic surfaces risks surface discoloration or structural softening over prolonged contact cycles.

Inline Electric Resistance Heaters: Constant Flow Warming

Inline electric heaters integrate directly into the circulation plumbing downstream of the water filter and circulation pump. Water flows across a contained electric resistance coil, absorbing heat continuously before returning through the return jets into the main basin. These systems incorporate mechanical pressure switches or digital flow sensors to prevent dry-firing if water movement ceases. Inline heaters provide uniform thermal distribution because the pump constantly mixes the fluid volume. Resistance heating draws substantial electrical current; consult the equipment nameplate, installation manual, and local electrical codes to verify the required circuit capacity and wire gauge for your specific model.

Reversible-Cycle Heat Pump Systems: The Efficient Dual Chiller-Heater

Reversible heat pumps represent advanced hydrotherapy thermal management by reversing the refrigerant cycle to provide both heating and cooling. Rather than generating heat through direct electrical resistance, these systems can absorb ambient air energy and transfer it into the circulating water, though specific components and heat exchanger materials vary by model. This thermodynamic process can yield favorable efficiency when properly matched to ambient conditions and water volume. Commercial facilities and premium residential setups sometimes depend on integrated units that maintain disciplined temperature control across changing seasons, though operational efficiency varies by model and environmental factors.

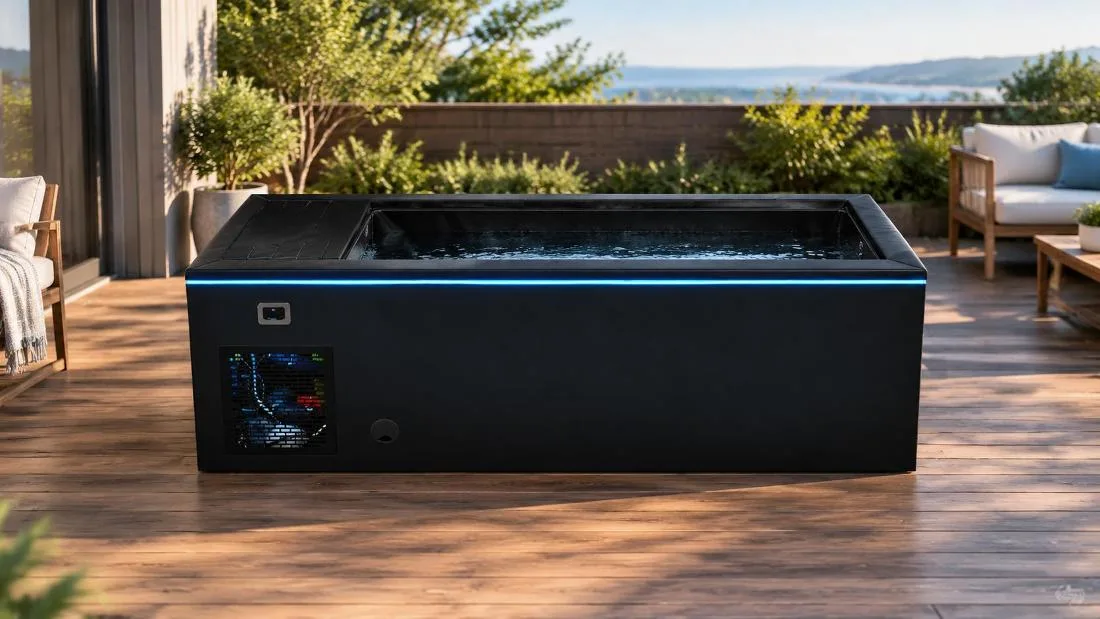

Front-facing horizontal eye-level view of the black OF-CP01 cold plunge tub featuring a cyan-blue LED perimeter accent strip

Technology Comparison Matrix: Common Heating Approaches

Evaluating heating hardware requires balancing thermal output against installation complexity and ongoing electrical overhead. The following matrix outlines operational differences across common plunge heating approaches:

Heating TechnologyPrimary Operating MechanismCommon Application Scenario
Submersible De-IcerExposed resistive elementEmergency off-grid tubs & stock tanks
Inline Electric HeaterEnclosed flow-through elementRetrofit plumbing loops & DIY setups
Reversible Heat PumpRefrigerant cycle reversalIntegrated wellness suites & luxury tubs

Thermal Retention Engineering: Why Heating Efficiency Starts with Insulation

Adding heating hardware to an uninsulated vessel resembles running a household furnace with the windows wide open. Without careful attention to structural insulation and boundary seals, thermal loss rapidly outpaces heat input, leading to continuous equipment strain and soaring utility costs.

Closed-Cell PU Insulation vs. Air Gaps: Halting Conductive Heat Loss

Conductive heat transfer occurs when warmth passes directly through the tub floor and sidewalls into the surrounding ambient air or concrete slab. Budget tubs often rely on empty air cavities beneath decorative skirting, allowing convection currents to strip thermal energy from the outer shell of the basin. High-density polyurethane foam, applied continuously around the tub shell, substantially reduces conductive loss. In vessels such as the OF-CP01 from Ocean Future, full PU insulation forms a thermal barrier around the Chinese white acrylic basin. This insulated core helps preserve dialed-in temperatures, shielding the water from outdoor winter chills or sweltering summer afternoons.

Direct overhead plan view of the white acrylic cold plunge basin showing dual hydrotherapy jets and segmented equipment access deck

The Critical Role of Rigid Thermal Tub Covers in Mitigating Evaporation

Substantial thermal loss in an open plunge basin happens at the water surface through evaporative cooling and radiant emission. Water vapor carries away latent heat at an astonishing rate, forcing heaters to run almost continuously when the surface sits exposed to dry winter winds. A custom-fitted insulating cover creates a vapor seal over the water line. Rigid foam cores wrapped in vapor barriers trap heat beneath the cover while keeping leaves, dust, and rainfall out of the sanitization system. Operating an outdoor heated plunge without a fitted cover drastically inflates operating costs and accelerates mechanical wear on the compressor.

Hydraulic Circulation and Anti-Stratification Logic

Water reaches its maximum physical density at approximately four degrees Celsius, causing colder water near freezing to rise toward the surface in stagnant environments. This thermal stratification allows a thin ice crust to form across the top perimeter even while deeper water registers safe operating levels. Continuous fluid movement through dedicated plumbing lines eliminates dead spots and preserves uniform thermal distribution. Circulation systems vary by model; check your equipment specifications to understand how water flows through filtration and returns to the basin. Moving water resists crystalline freeze structures more effectively than stagnant water, adding a mechanical layer of defense against freezing weather, though circulation alone cannot guarantee freeze prevention without adequate heating.

Step-by-Step Selection Blueprint: Choosing the Right Heating Solution

Configuring the ideal heating and freeze protection setup demands a systematic evaluation of your physical environment, equipment capacity, and daily recovery routines. Follow this structured roadmap to select the optimal configuration for your setup:

  1. Assess Ambient Climate Extremes and Placement Conditions – Begin by auditing the installation environment, noting historic winter low temperatures and wind exposure. Outdoor patio installations in northern climates require closed-cabinet enclosures with insulated service bays, whereas indoor wellness rooms or conditioned basements need minimal supplemental heat beyond baseline room ambient temperatures.

  2. Size Compressor and Element Wattage to Manufacturer Specifications – Match thermal output to manufacturer-confirmed water volume to ensure reasonable heating times without overloading electrical panels. Actual heating duration depends on rated heater output, fill volume, initial and target temperatures, and heat loss during operation. Always consult equipment specifications rather than estimating from exterior dimensions.

  3. Verify Integrated Sanitization and Flow Protection – Check that your proposed heating hardware communicates directly with water purification systems. Higher water temperatures accelerate biological growth, making proper sanitation essential. Verify whether your selected equipment includes the safety interlocks required by the manufacturer, such as automatic low-flow cut-off sensors to disable heating coils instantly if the filter cartridge becomes restricted.

  4. Evaluate Digital Touchscreen vs. Manual Controls for Dynamic Scheduling – Determine how you plan to manage temperature changes between daytime chill sessions and nighttime freeze prevention routines. Some digital control interfaces allow users to set precise target points, automate daily schedules, and monitor live readings on a single display, eliminating the guesswork of manual thermostat dials. Others provide temperature display and timer settings for manual session management.

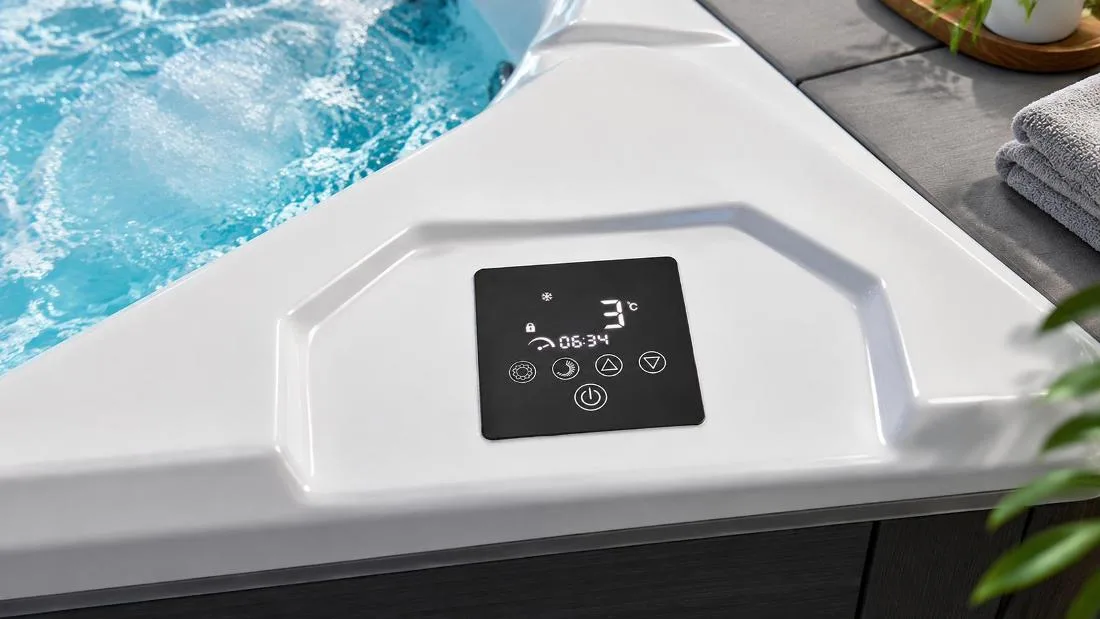

Close-up top-down view of the built-in digital touch control panel on the white acrylic tub ledge displaying a 3°C temperature readout

Technical Integration in Turnkey Recovery Architecture

For facilities and private residences seeking seamless execution, purpose-built turnkey plunge systems eliminate the plumbing vulnerabilities inherent to DIY add-on heaters. When engineering recovery systems, the integration of structural balance, water purification, and thermodynamic regulation guides every design choice. The single-person OF-CP01 illustrates how these engineering disciplines converge into a unified recovery ecosystem:

  • Integrated 1HP Chiller Architecture – Delivers stable, constant-temperature chilling down to therapeutic immersion levels with intelligent digital controls. The supplied specifications describe a 1HP cold water chiller system; for freeze protection of the tub and exposed plumbing, consult the manufacturer’s guidance on appropriate supplemental equipment and operational procedures.
  • Digital Touchscreen Control Panel – Features an intuitive display on the acrylic ledge with digital temperature display and timer settings for personalized temperature and session management.
  • Continuous Ozone Purification – Includes a built-in ozone generator working with a filtration system. Users should follow manufacturer sanitation instructions and maintain appropriate disinfection levels and pH balance.
  • Full PU Shell Insulation – Features PU insulation around the tub structure, pairing with a fitted cover to help retain target temperatures.
  • Architectural Exterior Cabinet – Available in white or black finishes, complete with integrated perimeter LED lighting and a net weight of 180 kilograms for permanent stability.

Frequently Asked Questions (FAQs)

Will keeping a heater in my cold plunge drastically inflate my electricity bill?

Energy consumption depends on the specific heater, setpoint, ambient conditions, insulation quality, cover fit, and usage patterns. A well-insulated basin with a tight-fitting thermal cover typically requires less energy to maintain low freeze-protection temperatures than to continuously heat water for hot tub sessions. Conversely, heating water up to forty degrees Celsius requires significantly more kilowatt-hours, especially when relying on standard electric resistance coils rather than a high-efficiency heat pump. Consult your equipment’s rated power consumption to estimate operating costs for your climate and usage.

Can I use a livestock stock tank de-icer inside an acrylic plunge tub?

Using unshielded farm de-icers inside a finished acrylic plunge tub presents substantial risks to equipment. The heating coils on agricultural de-icers reach high surface temperatures capable of scorching or warping Chinese white acrylic upon direct contact. If you must deploy an emergency drop-in element, it should feature a heavy-duty plastic cage or stainless steel standoff guard that prevents any hot component from touching the basin floor or sidewalls.

At what ambient temperature should my plunge’s freeze protection system engage?

Freeze protection requirements depend on your specific equipment, local climate, and installation conditions. While fresh water freezes at zero degrees Celsius, exposed plumbing and small-diameter lines can lose heat faster than the main basin. Always follow your equipment manufacturer’s freeze-protection instructions, which account for your specific model’s design and capabilities. External plumbing may require additional insulation or heat trace cables in severe climates.

How does alternating between cold water and heat affect tub water sanitation?

Warmer water increases biological activity and accelerates bacterial reproduction compared to water kept near freezing. Elevating water temperatures causes body oils, perspiration, and biological contaminants to shed more rapidly into the water column. When running dual-temperature systems, maintain proper disinfectant residuals and pH levels according to your equipment manufacturer’s guidelines. The OF-CP01 includes an ozone generator and filtration system; follow the provided sanitation instructions to maintain water quality across temperature ranges.

Conclusion: Balancing Thermal Dynamics for Ultimate Recovery Longevity

Mastering year-round cold water immersion requires respecting the full spectrum of thermodynamic challenges. Relying solely on a chilling compressor leaves outdoor installations exposed to sudden winter freezes that can permanently crack plumbing fittings and damage circulation pumps. Integrating a dependable cold plunge heater transforms your setup into an all-weather wellness center, safeguarding your investment against harsh sub-zero conditions while creating versatile options for soothing contrast therapy sessions.

By uniting polyurethane shell insulation, active hydraulic circulation, and intuitive touchscreen temperature management, you reduce freeze risks while gaining greater control over your physical recovery. A properly configured system ensures that whether morning brings a deep winter frost or a summer heatwave, stepping into your basin delivers the precise therapeutic immersion your body demands without equipment worries or compromised water quality.
