Complete Cold Plunge Chiller Guide: Sizing, Thermodynamics, and Setup Architecture

  • 2026-10-22
  • 14

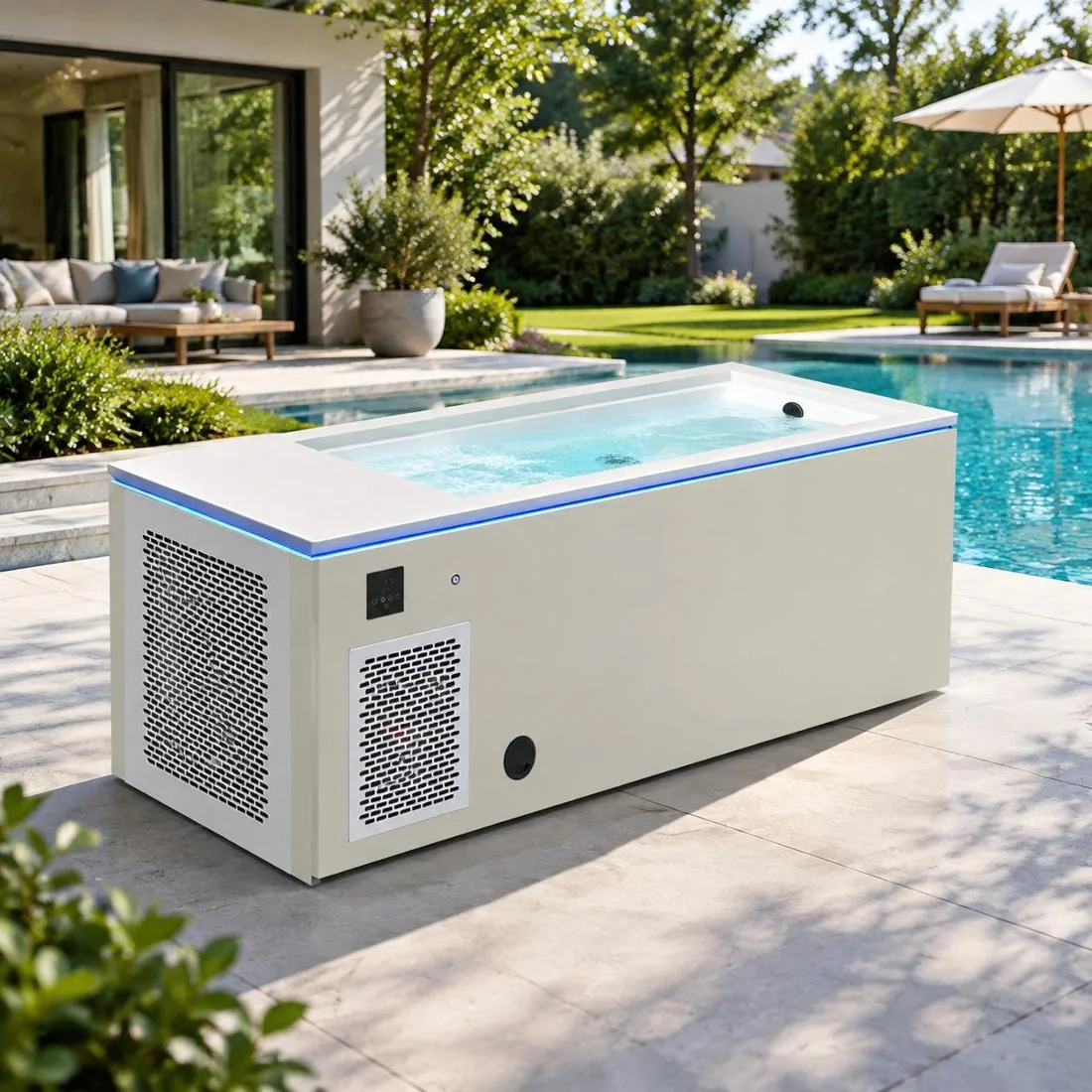

A single-person cold plunge tub installed on a modern residential backyard patio

Daily recovery routines often stall when physical ice logistics collapse under summer heat. Investing in a dedicated cold plunge chiller transforms unpredictable water temperatures into a precise thermal recovery protocol. Without dependable mechanical cooling, a cold plunge tub quickly equilibrates with ambient air, reducing the effectiveness of cold water immersion. Understanding refrigeration dynamics, continuous sanitization cycles, and insulation geometry allows homeowners and commercial operators to choose a chilling system that runs efficiently year after year.

Thermodynamic Fundamentals: How a Cold Plunge Chiller Regulates Recovery Water

Traditional ice bags present a severe thermodynamic deficit during cold water therapy. While melting ice does absorb heat from the surrounding water, the process is inconsistent and difficult to control. A dedicated cold plunge chiller operates on continuous heat transfer, extracting thermal energy from circulating water and venting it into the ambient air. This mechanical process maintains water at a stable, dialed-in temperature without constant manual intervention, eliminating the need to monitor melting rates or plan ice delivery schedules.

The Vapor-Compression Refrigeration Cycle and Heat Exchanger Dynamics

A recovery chiller relies on a closed-loop vapor-compression refrigeration cycle. Gaseous refrigerant enters an electric compressor, where high pressure raises both its density and temperature. This superheated vapor flows into an external condenser coil, releasing accumulated heat to the surrounding environment through forced-air fan convection. The continuous heat rejection maintains the temperature differential needed for sustained cold water production.

Once condensed into a high-pressure liquid, the refrigerant passes through an expansion valve. This sudden pressure drop causes rapid flash evaporation, creating a cold, low-pressure refrigerant mixture that then enters a titanium or marine-grade stainless steel heat exchanger. Water pumped from the bathing tub flows across the opposing surface of this exchanger, shedding thermal energy directly into the refrigerant before returning to the tub basin. This continuous loop maintains target temperatures without replenishing ice or adjusting fill levels.

Thermal Boundary Layers: Mechanical Water Flow vs. Static Water

Static water immersion creates an invisible microclimate against human skin known as the thermal boundary layer. When an athlete sits motionless in uncirculated water, body heat can warm the immediate fluid envelope, reducing the cold exposure intensity. This stagnant layer acts as insulation, diminishing the temperature gradient between skin and bulk water temperature.

A mechanical cold water chiller system counteracts this insulation effect by driving continuous fluid circulation. Active pumps route water through external lines and return it via precision nozzles, affecting heat transfer at the skin surface. This water movement helps deliver more consistent cold exposure during immersion. Continuous circulation also prevents thermal stratification inside the basin. Without active mixing, warm surface layers float atop colder depths, creating inconsistent exposure zones that compromise the intended cold immersion experience.

Chiller Sizing Framework: Calculating Horsepower, Thermal Load, and Pull-Down Times

Selecting the right compressor displacement prevents premature mechanical wear and thermal stalling. Sizing a cold plunge chiller requires balancing the total fluid mass against external ambient air temperatures and direct solar radiation. An undersized unit may run for extended periods without reaching target cold temperatures, while an oversized system cycles frequently, wasting installation capital and electrical resources.

Matching Compressor Horsepower to Water Volume and Ambient Heat Load

Compressor horsepower indicates the motor’s mechanical power output, but actual cooling capacity depends on the complete refrigeration system design, including heat exchanger efficiency, refrigerant type, and operating conditions. Different manufacturers specify cooling capacity in BTU per hour at defined operating conditions. To properly size a cold plunge chiller, compare the manufacturer’s stated cooling capacity at relevant operating temperatures with your installation’s heat load. Calculate your setup’s heat gain by considering water volume, ambient temperature, sun exposure, insulation quality, and usage patterns. A chiller rated for your specific conditions will maintain target temperatures without excessive runtime or thermal stalling.

Pull-Down Rates and Thermal Recovery Between Consecutive Plunge Sessions

Initial pull-down describes the duration needed to chill ambient tap water down to your desired target temperature. A human body introduces substantial heat during full immersion. In back-to-back group training protocols, this cumulative heat injection quickly warms small water volumes. High-output refrigeration systems help maintain more stable temperatures between sessions. By moving water through high-efficiency heat exchangers, a properly sized compressor can recover target temperatures faster after use. Check the manufacturer’s pull-down performance data for your specific water volume and ambient conditions to set realistic expectations for your installation.

A studio perspective view of the dark cabinet cold plunge tub with louvered ventilation and perimeter LED

The Thermal Shell Equation: PU Insulation and Tub Covers

Refrigeration capacity means little if the tub basin continuously absorbs ambient heat. Structural thermal conservation relies heavily on polyurethane (PU) insulation applied directly against the tub walls. Insulation creates a barrier against radiant and conductive heat gain, reducing the chiller’s workload. Proper insulation transforms raw cooling capacity into sustained performance across varying ambient conditions.

  • Reduced heat transfer: Insulation limits conductive heat gain across the tub floor and sidewalls.
  • Minimized compressor cycling: Insulated sidewalls preserve low water temperatures, letting the compressor rest once setpoints are met.
  • Fitted covers: Tightly fitted covers block surface heat transfer, which accounts for a substantial portion of total thermal loss.

Without proper insulation, even a properly sized cold plunge chiller will struggle to maintain target temperatures in warm climates. The insulation layer extends equipment runtime and reduces electrical consumption by limiting parasitic heat intrusion.

Water Sanitation Architecture: Mechanical Filtration and Pathogen Defense

Chilled water slows bacterial growth but does not eliminate biological contamination. Dead skin cells, sebaceous oils, and ambient dust accumulate inside closed loops, forming stubborn biofilms along interior plumbing runs. Maintaining crystal-clear water requires integrating physical sediment trapping with continuous water treatment protocols. Regular monitoring ensures water remains safe and hygienic for repeated immersion sessions.

Sediment Filtration: Trapping Particulates and Organic Debris

Mechanical filters act as the first defensive perimeter for sensitive refrigeration components. Standard setups route incoming tub water through a replaceable pleated filter cartridge that captures suspended debris before water enters the chiller loop. Cleaning the filter on a regular cadence preserves system flow rates and prevents equipment strain. Consult your unit’s maintenance manual for the specified filter type, micron rating, and recommended cleaning and replacement intervals. Regular filter maintenance extends equipment life by maintaining consistent hydraulic pressure across the entire circulation loop.

Automated Ozone Sanitation: Supplemental Pathogen Control

Traditional swimming pool sanitizers like chlorine require careful monitoring and dosing to maintain proper levels. An integrated ozone generator offers a supplemental oxidation pathway designed to work alongside your primary water treatment system. Ozone helps oxidize organic matter and contaminants in the water. Because ozone decomposes over time, it leaves no persistent chemical residue. This sanitation feature works in combination with proper filtration and regular water testing to help maintain water clarity. Always follow the manufacturer’s recommended water treatment and testing protocols. No single sanitation method guarantees complete pathogen elimination without proper maintenance and monitoring.

Water Circulation Dynamics and Hydrotherapy Jet Integration

Stagnant pockets inside a plunge tub create thermal dead zones that can harbor micro-contaminants. Strategically placed return ports help drive water circulation and reduce stagnant areas. Integrating hydrotherapy jets delivers targeted water movement alongside standard cold therapy. Water movement helps prevent surface stratification, promoting more consistent temperature distribution throughout the basin. This continuous flow pattern ensures that freshly chilled water reaches all areas of the tub, preventing localized warm spots that compromise cold exposure consistency.

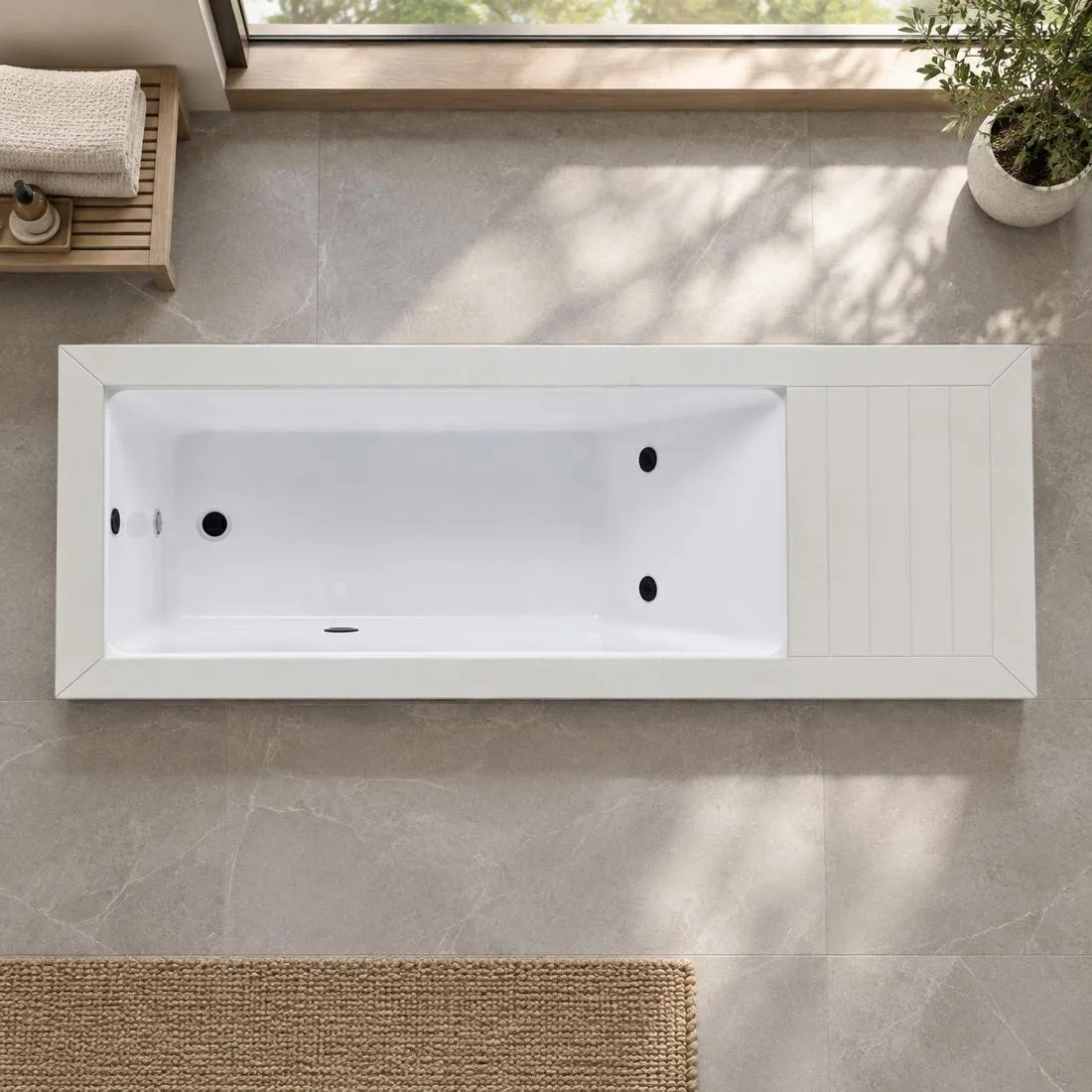

Overhead plan view of a white acrylic basin showing dual hydrotherapy jets and floor drain

Evaluating Tub Construction, Control Interfaces, and Spatial Integration

Long-term durability depends on using rigid structural substrates and responsive control electronics. A cold plunge tub must bear substantial water weight while resisting the constant thermal expansion and contraction cycles of year-round operation. Selecting the right basin shell material and digital interface helps prevent structural leaks, electrical faults, and surface degradation. Proper material selection ensures the system maintains structural integrity through thousands of thermal cycles and exposure to water treatment chemicals.

Shell Substrates: Acrylic, Rotomolded Plastics, and Stainless Steel Options

Rotomolded polyethylene offers basic budget utility, but its soft structural profile can flex and warp under sustained hydraulic loads. Thin stainless steel tanks conduct heat rapidly, driving up chilling runtimes unless wrapped in heavy external insulation jackets. Cast acrylic provides a rigid basin substrate that balances structural strength with a smooth, non-porous finish. Acrylic shells form deep anatomical contours and provide a smooth surface that requires no harsh abrasive detergents for routine cleaning. The material will not rust when exposed to water treatment chemicals. This seamless surface maintains a clean appearance during regular use and resists staining from organic compounds.

Digital Touchscreen Calibration and Precision Thermostats

Analog dial thermostats introduce broad operational deadbands, often allowing water temperatures to swing several degrees away from target settings. High-performance plunges use digital microprocessors paired with temperature sensors. These automated controllers monitor basin temperatures in real time, activating the compressor only when the water climbs past set tolerance limits. Digital precision eliminates the guesswork associated with mechanical dials and provides repeatable session protocols.

  1. Check the illuminated readout: Confirm target parameters, current water temperature, and timer status on the panel face.
  2. Adjust recovery targets: Tap the temperature adjustment controls to set therapeutic thresholds.
  3. Set session duration: Program integrated countdown timers to accurately monitor cold exposure times.

Digital controls provide precise temperature management and session timing for consistent cold immersion protocols. This repeatability supports structured training regimens where consistent exposure duration and temperature matter for tracking adaptation over time.

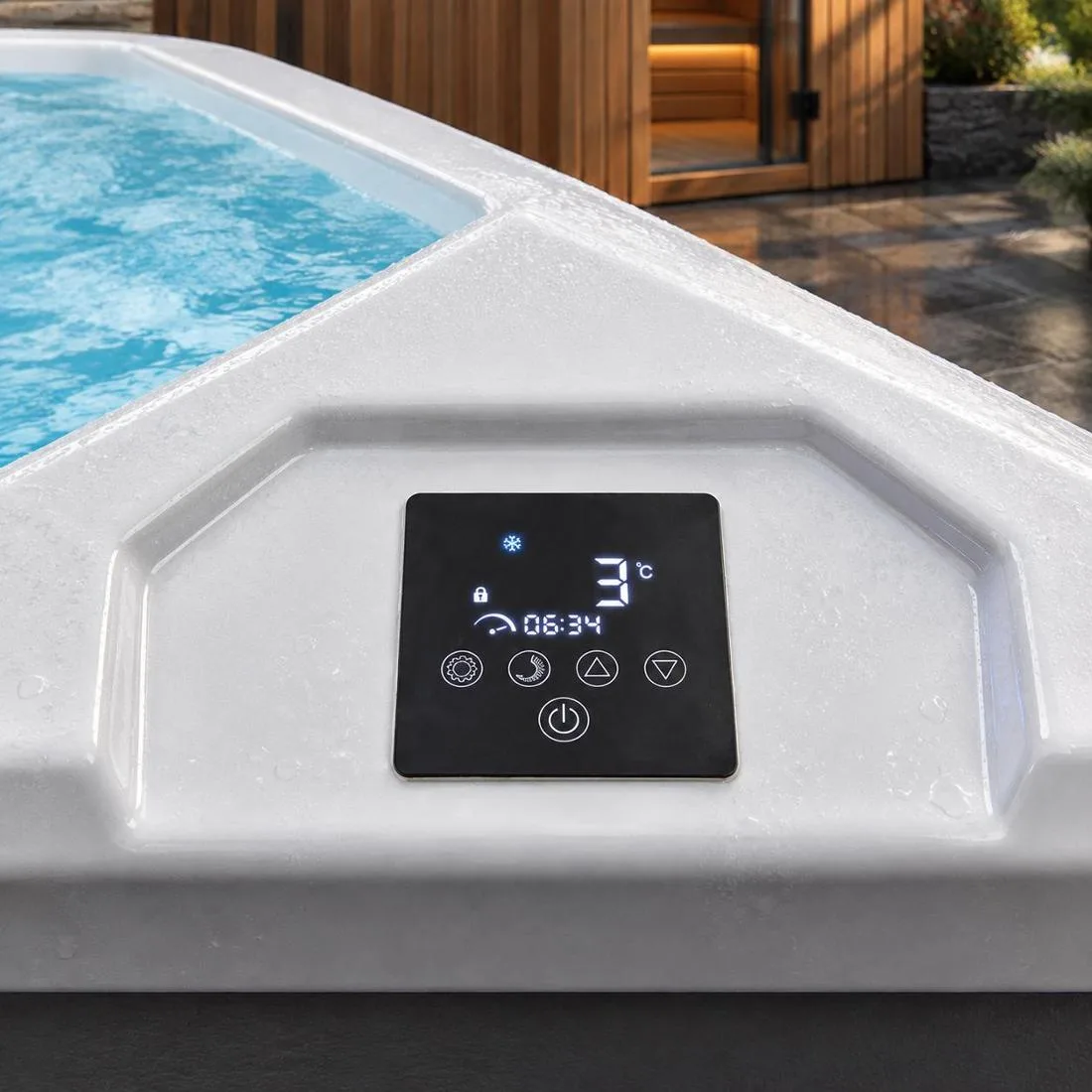

Close-up of an integrated digital touch control panel on a smooth white acrylic tub ledge

Installation Environments: Indoor Wellness Basements vs. Outdoor Deck Thermal Loads

Locating a cold plunge system requires careful consideration of ventilation and floor load capacities. Calculate the filled weight of your specific system by adding the tub’s dry weight to the weight of water at full capacity (approximately 8.34 pounds per gallon). Verify that decks and upper-level floors are structurally rated to safely support this continuous static load plus occupant weight. Indoor installations demand adequate airflow around the chiller compartment exhaust grilles. A refrigeration condenser expels considerable warm air; without continuous cross-ventilation, small basements quickly overheat, reducing chiller efficiency. Outdoor installations require protection for electronic components against weather exposure. Consult the manufacturer’s installation guidelines for environmental requirements and structural load specifications.

Practical Case Study: Evaluating an Integrated 1HP System Architecture

Modular, DIY plunge setups often rely on external hoses, exposed wiring, and unshielded pumps that create tripping hazards and leak risks. Modern integrated tubs eliminate this clutter by enclosing the refrigeration loop and sanitation components inside a single cabinet. For us at Ocean Future, designing self-contained cold recovery systems centers on uniting technical performance with practical daily utility. Integrated designs reduce installation complexity and provide weatherproof enclosures for sensitive electrical and refrigeration components.

Technical Anatomy of the OF-CP01 Single-Person Recovery Tub

The OF-CP01 illustrates how engineering fits inside an ergonomic footprint measuring 2140 x 770 x 714 mm. Built around a Chinese white acrylic shell with PU thermal insulation, the unit houses a 1HP cold plunge chiller system designed for therapeutic cold immersion. The complete 180 KG dry-weight assembly integrates dual hydrotherapy jets, an overflow system, a drainer, and an ozone generator with filtration system into its decorative skirt. Operating this system is straightforward thanks to an integrated digital touchscreen control panel that displays temperature and timer settings. Perimeter LED lighting provides visual contrast for evening plunge sessions. Available in white or black finishes, this self-contained design suits both private residential patios and professional sports therapy centers according to the listed application scenarios.

Balancing Compressor Workload with PU Insulation

The OF-CP01 pairs a 1 HP chiller with PU thermal insulation layered around the acrylic basin. An insulated tub cover helps retain cold water between sessions. This design approach integrates mechanical refrigeration with passive thermal conservation, reducing the compressor’s workload during idle periods and maintaining stable water temperatures with fewer active cooling cycles.

Routine Maintenance, Electrical Demands, and Energy Management

Consistent preventive care keeps your cold plunge chiller operating cleanly and efficiently. Mineral scale, biological debris, and electrical fluctuations can degrade cooling speeds and strain internal components. Following the manufacturer’s maintenance guidelines protects your investment and ensures safe, hygienic water year-round. Scheduled maintenance extends equipment lifespan and prevents unexpected failures during critical recovery periods.

Filter Maintenance and Ozone System Checkups

Sediment filter health directly governs system flow rates. When filter media load up with debris, backpressure rises, reducing circulation efficiency. Performing regular filter checks avoids unexpected system performance degradation during recovery routines. Consult your unit’s maintenance manual for recommended filter cleaning and replacement intervals. Different systems and usage patterns require different service schedules. Regular filter maintenance extends equipment life by maintaining consistent hydraulic pressure across the entire circulation loop. Inspect ozone system components according to the manufacturer’s schedule to ensure proper operation and effective water treatment.

Calculating Electrical Power Draw and Managing Operation

Electrical requirements vary by unit design and configuration. Check the manufacturer’s electrical specifications on the unit’s nameplate and installation manual. Proper electrical installation typically requires a dedicated circuit with appropriate amperage rating and Ground Fault Circuit Interrupter (GFCI) protection for safety around water. Consult a qualified electrician to ensure your installation meets local electrical codes and the manufacturer’s requirements. For daily energy management, follow the manufacturer’s operating guidance. Whether maintaining a setpoint or switching the system off between uses consumes less energy depends on usage patterns, insulation quality, ambient heat gain, and off-time duration. Consult your system’s operating manual for recommended practices tailored to your specific model and installation environment.

Frequently Asked Questions

How do I properly size a cold plunge chiller for my installation?

Proper sizing requires comparing the manufacturer’s stated cooling capacity at relevant operating temperatures with your installation’s heat load. Consider water volume, ambient temperature, sun exposure, insulation quality, and usage patterns when calculating heat gain. The OF-CP01 features a 1 HP chiller; consult the manufacturer’s performance specifications to determine if it matches your specific installation requirements. Undersizing leads to extended runtimes and difficulty reaching target temperatures, while oversizing wastes capital and operational efficiency.

Can a cold plunge chiller run continuously, or does it require scheduled rest cycles?

Operation depends on the unit’s design and manufacturer instructions. Some systems use thermostatic controls that cycle the compressor on and off to maintain target temperatures, while others may have different operational profiles. Consult your unit’s operating manual for manufacturer recommendations on continuous operation versus scheduled shutdowns. Following the manufacturer’s guidance ensures safe operation and optimal equipment longevity.

How does ozone sanitation work in cold plunge systems?

Ozone generators help oxidize organic contaminants in the water circulation system. Ozone decomposes over time and works as a supplemental sanitation method alongside mechanical filtration. Always follow the manufacturer’s complete water treatment and testing protocols, as no single method guarantees complete sanitation without proper system maintenance and monitoring. Regular water testing confirms that sanitizer levels remain within safe, effective ranges.

What electrical requirements does a cold plunge chiller have?

Electrical requirements depend on the specific unit’s design and configuration. Check the manufacturer’s electrical specifications, typically found on the unit’s nameplate and in the installation manual. Most systems require a dedicated circuit with appropriate voltage, amperage, and Ground Fault Circuit Interrupter (GFCI) protection. Consult a qualified electrician familiar with local codes to ensure safe, compliant installation that meets both manufacturer specifications and regional electrical standards.

How frequently should cold plunge water be drained and replaced?

Water replacement intervals depend on usage frequency, bather load, filtration efficiency, and water treatment effectiveness. Follow the manufacturer’s recommended maintenance schedule and water testing protocols. Regular testing helps determine when water quality has degraded beyond acceptable levels, regardless of visual appearance or feel. Rinsing off before entering the tub reduces organic loads and extends water life. Schedule drainage and refills according to manufacturer guidelines and water test results, not solely on visible signs like cloudiness or foam.

Conclusion

Stepping into a dependable cold plunge tub offers a consistent cold immersion experience. Investing in an engineered cold plunge chiller eliminates the logistics and temperature fluctuations of melting ice bags, providing reliable mechanical cooling at the touch of a button. By pairing an appropriately sized compressor with proper insulation, integrated filtration, and durable construction materials, you create a system designed for consistent cold water immersion over many seasons. Whether installed in a residential backyard or a professional training facility, a well-designed cold plunge chiller transforms cold therapy from an occasional experiment into a sustainable daily practice.
